| Product# : | 1F1BA7 |

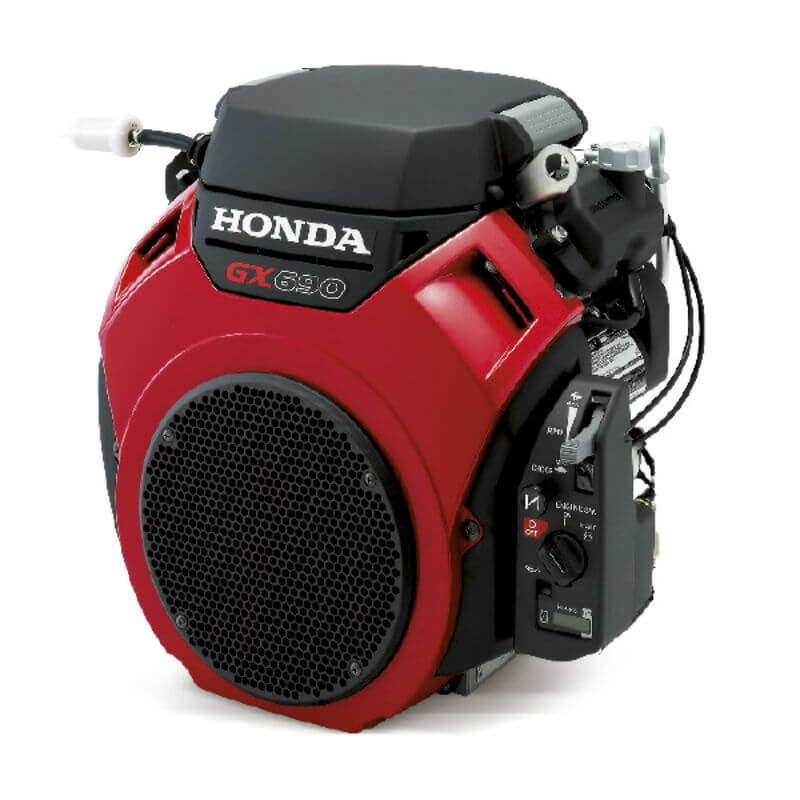

| Model : | GX690 |
| Brand : | Honda |
| Warranty : | 1 Year |
| Share Product : |
|
| Bore X Stroke (mm) | 2 / 78 x 72 mm |
| Compression ratio | 9.3 : 1 |
| Description Code | 4-stroke 2-cylinder, OHV petrol engine, 90° V-twin design, horizontal shaft |
| Ignition System | Digital CDI with variable ignition timing |
| Net Power | 16.5 kW ( 22.1 HP ) / 3600 rpm |
| Dry Weight(Kg) | 44.6 kg |
| Displacement | 688 cm?3; |
| Cylinder sleeve type | Cast iron sleeve |
| Dimensions (L x W x H) | 429 x 410 x 438 mm |
| Fuel cons. at cont. rated power | 6.7 L/h - 3600 rpm |
| Cont rated power | 11.5 kW ( 15.4 HP ) / 3000 rpm, 13.0 kW ( 17.4 HP ) / 3600 rpm |
| Max. net torque | 48.3 Nm / 4.93 kgfm / 2500 rpm |
| Lubrication | Full-pressure |
| Engine Oil Capacity | 1.9 Liter |
| Carburettor: | 2-barrel, fuel cut solenoid |
| Starter | Electric |
