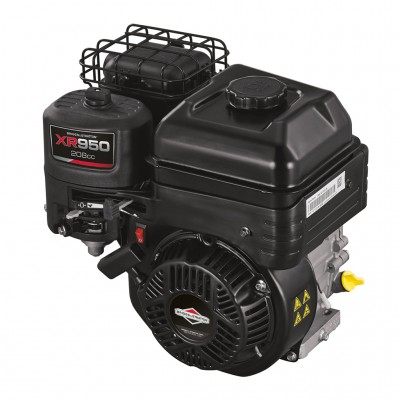

Product# MDH2EPE05
Engine type: |
4-stroke single cylinder, OHV petrol engine, 25 inclined cylinder, Horizontal shaft |
Cylinder sleeve type: |
Cast iron sleeve |
Bore x Stroke: |
68 x 54 mm |
Displacement: |
196 cm?3; |
Compression ratio: |
8.5 : 1 |
Net power: |
4.1 kW ( 5.5 HP ) / 3600 rpm |
Cont rated power: |
3.3 kW ( 4.4 HP ) / 3000 rpm, 3.7 kW ( 5.0 HP ) / 3600 rpm |
Max. net torque: |
12.4 Nm / 1.26 kgfm / 2500 rpm |
Ignition System: |
Transistorised |
Starter: |
Recoil (el. start optional) |
Fuel tank capacity: |
3.1 Liter |
Fuel cons. at cont. rated power: |
1.7 L/h - 3600 rpm |
Engine oil capacity: |
0.6 Liter |
Dimensions (L x W x H): |
321 x 376 x 346 mm |
Dry weight: |
16.1 kg |
